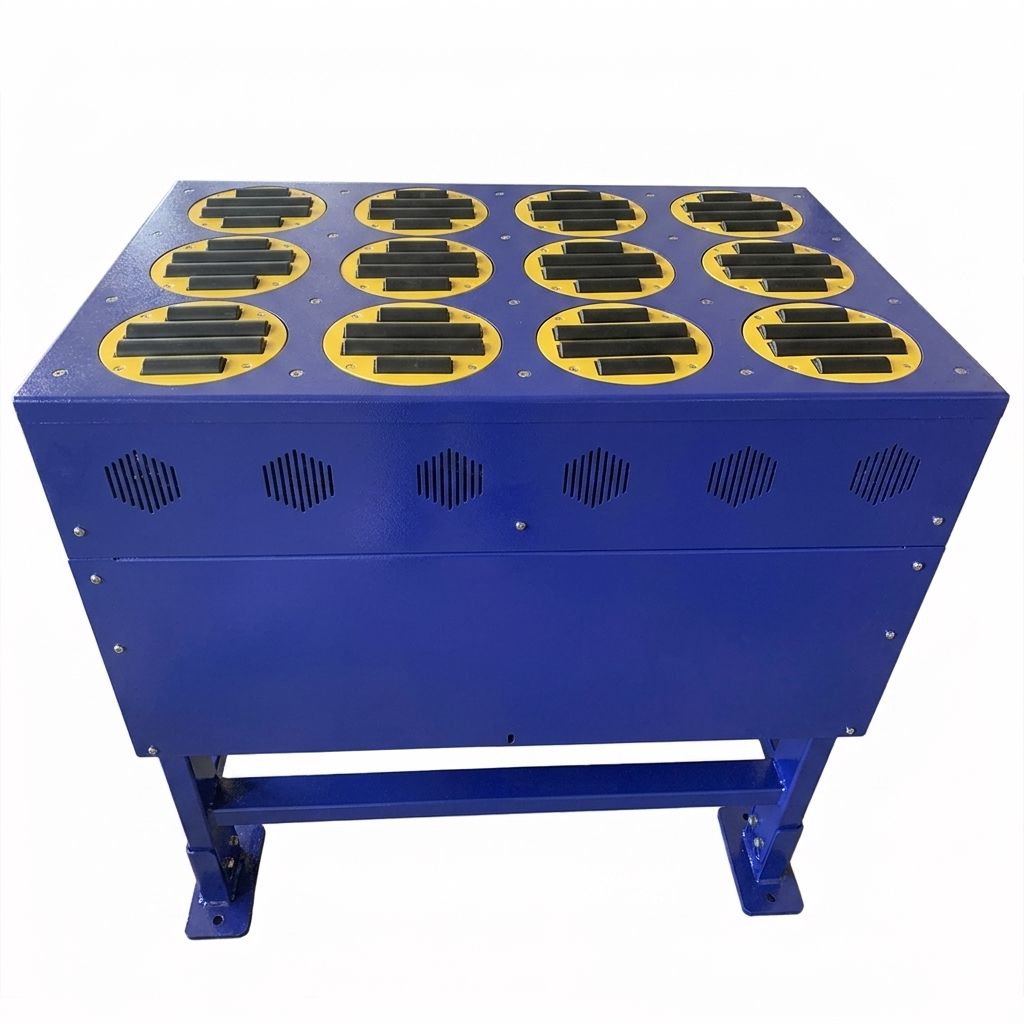

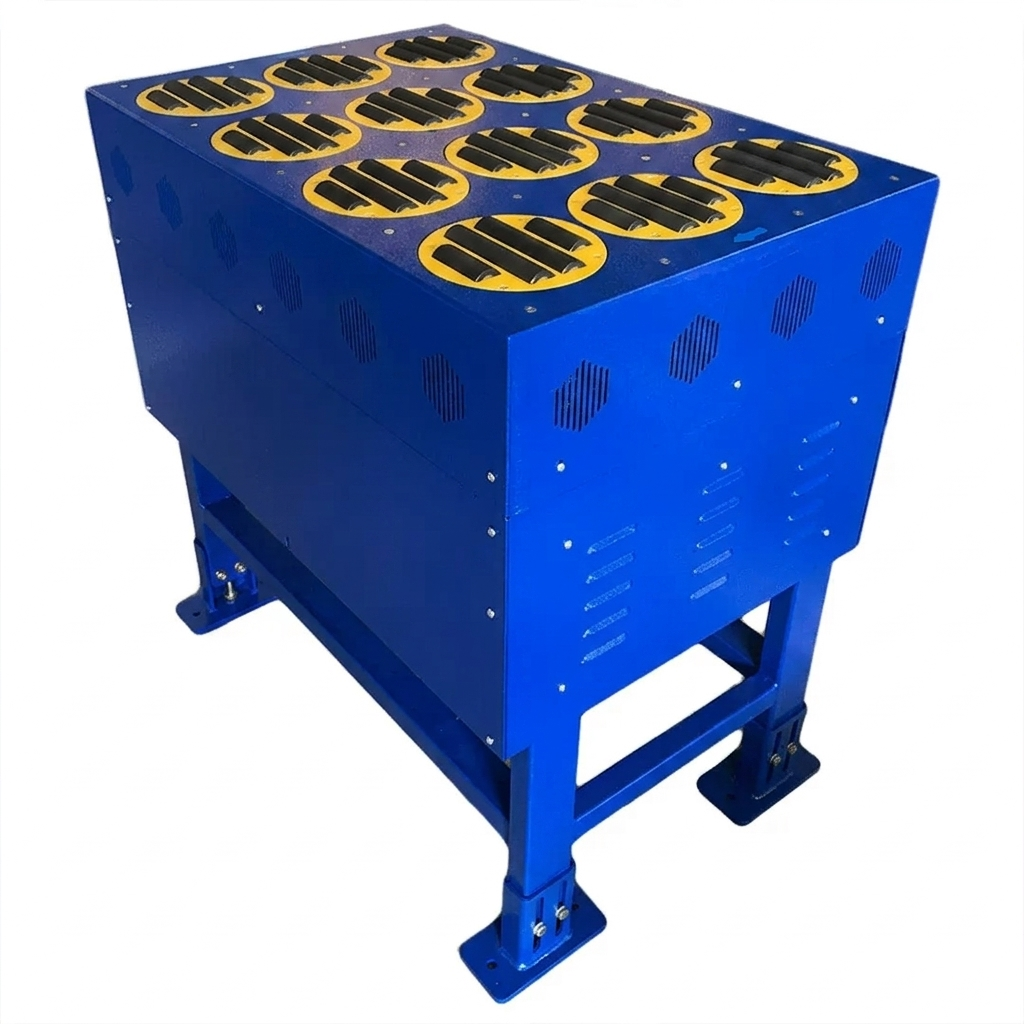

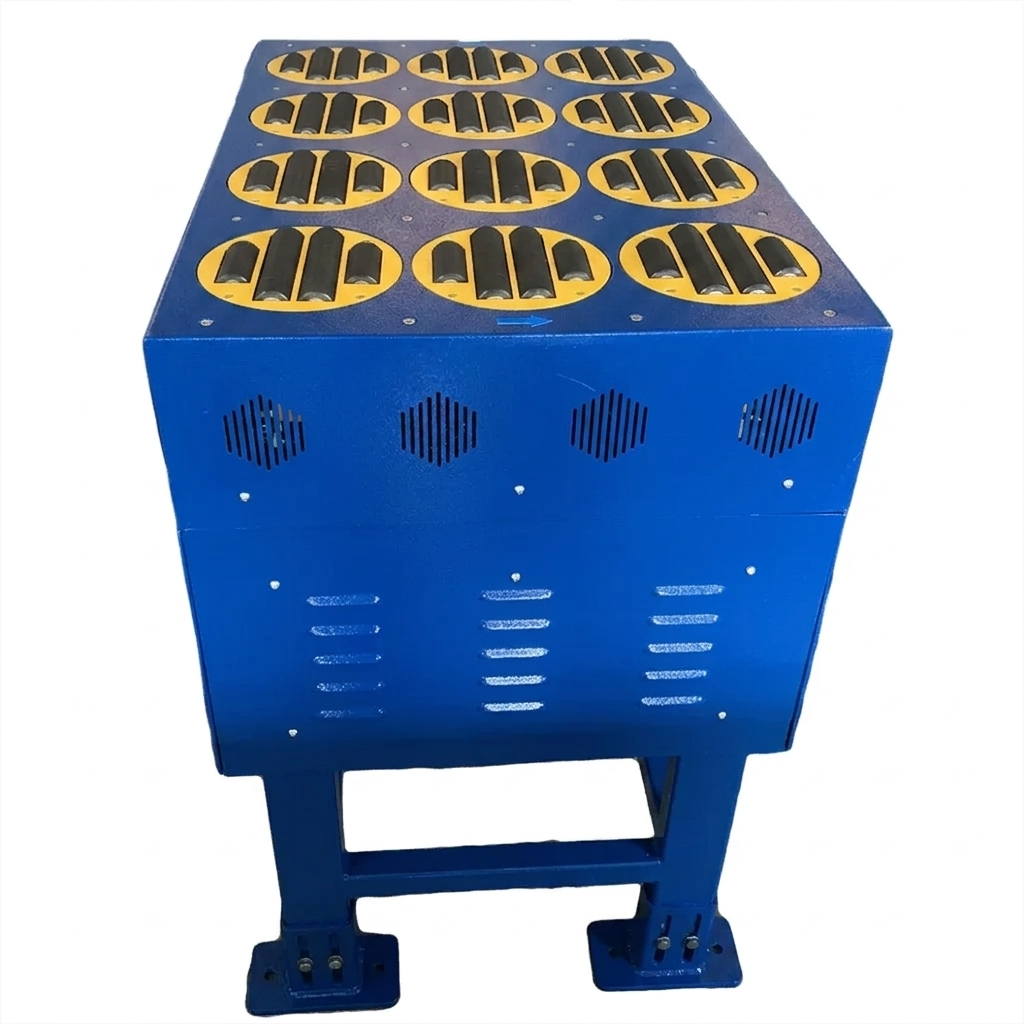

Turntable Wheel Sorter

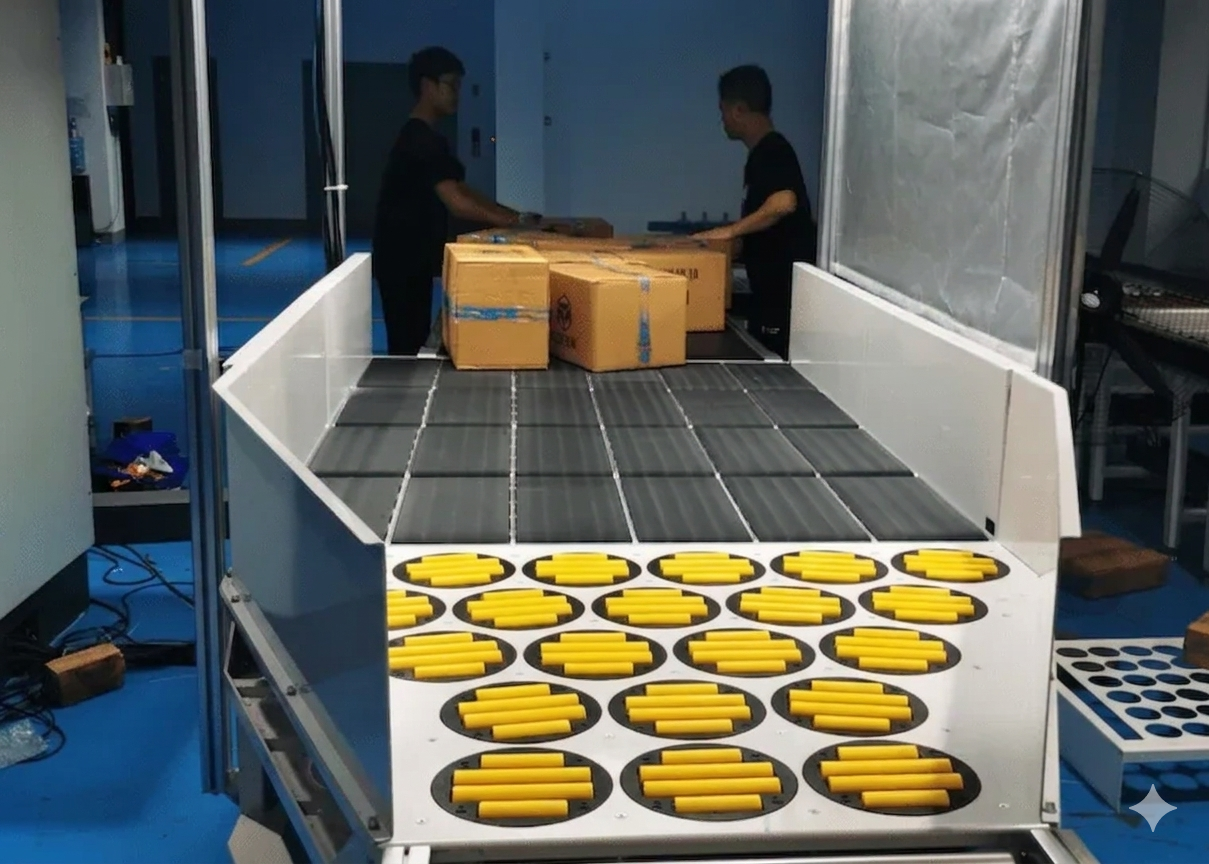

The Turntable Wheel Sorter combines a rotating turntable mechanism with wheel-driven conveying to divert parcels in multiple directions, including compact routing designs up to 360 degrees.
It is ideal for sites where floor space is limited but sorting logic is complex, helping reduce conveyor length while maintaining reliable parcel flow.
Key Features
- Multi-direction parcel routing for complex layouts
- Continuous operation for high-efficiency sorting lines
- Compact footprint for space-constrained warehouses
- Gentle handling for cartons, boxes, and lightweight parcels
- PLC-based control with WMS, WCS, and DWS compatibility
Applications
- E-commerce fulfillment centers
- Parcel distribution hubs
- Cross-border logistics sorting centers
- 3PL logistics warehouses
- Retail and FMCG distribution centers
Technical Notes
| Speed | 45-120 m/min |
|---|---|
| Sorting Efficiency | Up to 4,000-6,000 items/hour |
| Swing Angle | +/-45 degrees, customizable layouts available |
| Sorting Weight | Up to 60 kg/item |
| Equipment Width | 220 / 420 / 620 / 820 / 860 / 1060 / 1260 mm or non-standard customization |
| Drive Method | Servo drive |
Guangdong Guosheng Intelligent Equipment can customize dimensions, material options, control logic, and integration interfaces based on your site plan, parcel profile, throughput target, and automation requirements.
